The El Roy is the ultimate aggressive steel hardtail that’ll get you to the top, and then really shine on the way down, with a spicy mix of progressive geometry and supple steel.
The El Roy is the ultimate aggressive steel hardtail that’ll get you to the top, and then really shine on the way down, with a spicy mix of progressive geometry and supple steel.
Marin

2022 Marin El Roy 29 Steel Mountain Bike Size Grande in Blue

£2,195.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

You have the right under The CCR (Consumer Contracts Regulations) 2014 which states that up to 14 days after receiving your goods, in most cases, you can change your mind and get a full refund. You have the right to cancel this contract within 14 days from delivery without giving any reason. This right does not apply to any customised or personalised goods bought through our website. To exercise this right please Contact Us prior to the expiry of the cancellation rights period.

If you cancel this contract, we will reimburse to you all payments received from you, including the costs of delivery (except for the supplementary costs arising if you chose a type of delivery other than the least expensive type of standard delivery offered by us).

We may make a deduction from the reimbursement for loss in value of any goods supplied, if the loss is the result of unnecessary handling by you.

We will make the reimbursement without undue delay, and not later than 14 days after the day we received back from you any goods supplied; or (if earlier) 14 days after the day you provide evidence that you have returned the goods; or if there were no goods supplied, 14 days after the day on which we are informed about your decision to cancel this contract.

We will make the reimbursement using the same means of payment as you used for the initial transaction, unless you have expressly agreed otherwise; in any event, you will not incur any fees as a result of the reimbursement.

The CRA (Consumer Rights Act) 2015 states that goods must be as described, fit for purpose and of satisfactory quality. During the expected lifespan of your product you're entitled to the following; up to 30 days, if your goods are faulty, then you can get a refund. Up to six months, if they can't be repaired or replaced, then you're entitled to a full refund, in most cases, up to six years, if the goods do not last a reasonable length of time, you may be entitled to some money back.

Nothing in this contract affects your legal rights under the Consumer Rights Act 2015 (also known as ‘statutory rights’). You may also have other rights in law.

Thanks for your support,

The Friction Cycles Team.

2022 Marin El Roy 29 Steel Mountain Bike Size Grande in Blue

Season:2023

Brand:Marin

Code:735874002

Detail image of the El Roy downtube, highlighting the Series 3 chromoly frame decal

SERIES 3 CRMO FRAME

The El Roy is built on a stout Series 3 4130 CrMo frame with investment cast dropouts, integrated drop-in headset, external brake and hose mounts, all fully ED coated for longevity.

Detail image of the headtube of the El Roy, highlighting the slack 63° headtube angle

GEOMETRY

Gravity-oriented geometry, with a 63° headtube and 78° seattube angles, 44mm fork offset, and long reach measurements (Regular = 480mm, Grande = 510mm).

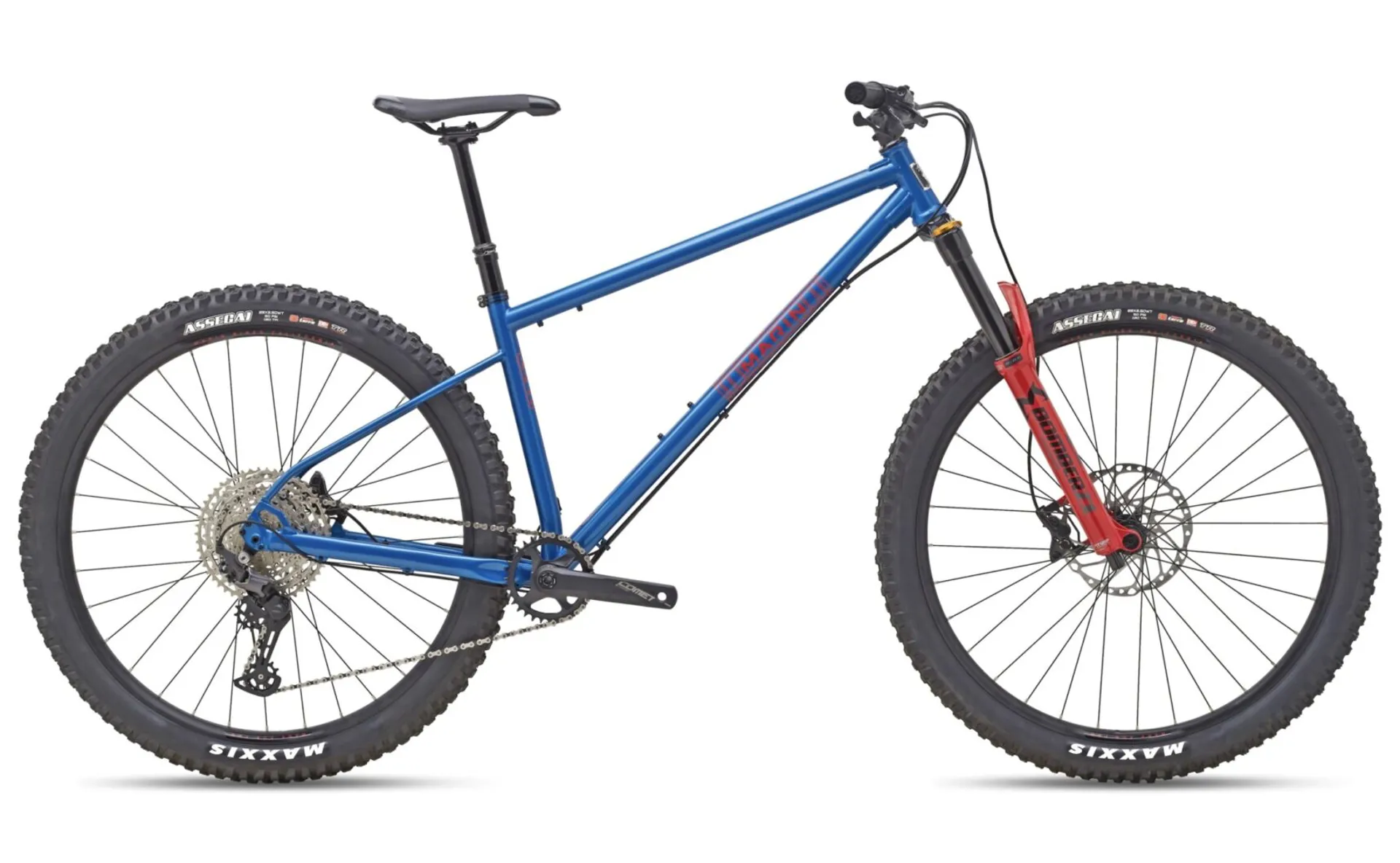

Profile image of the El Roy, atop brick and stone rubble

TWO SIZES

Regular and Grande frame sizes fit a wide range of riders, with included 150mm (Regular) or 170mm (Grande) dropper posts.

Detail image of the right rear dropout of the El Roy

INVESTMENT CAST DROPOUTS

Custom investment cast CrMo 148x12mm Boost thru-axle drop outs provide strength and stiffness where you need it most.

Marin El Roy top tube storage detail.

TOPTUBE STORAGE MOUNTS

Bosses on the underside of the top tube give the rider the option to mount tools and other accessories in a tidy and secure fashion.

Technical Information
  • FRAME

    Series 3 Double Butted and Formed CrMo tubing, Integrated Drop-In Headset, External Rear Derailleur and Brake Housing, Internal Dropper Post Routing, 148x12mm Boost Rear Spacing, Post Mount Brake Mounts

  • FRONT SUSPENSION

    Marzocchi Z1, 140mm Travel, EVOL Air Spring, GRIP Damper w/ Sweep Adjust, Kabolt 110 Axle, 44mm Offset

  • RIMS

    Marin, Double Wall Alloy, 29mm Inner, Welded Joint, Disc Specific, 32H, Tubeless Compatible

  • HUB, REAR

    Shimano HB-MT410B, 148x12mm, Disc, Microspline Freehub Body

  • HUB, FRONT

    Shimano HF-MT410B, 110x15mm, Disc

  • SPOKE, NIPPLES

    14g Black Stainless Steel

  • TIRES

    Maxxis Assegai 29x2.5", 3C MAXX GRIP EXO+ Front, 3C MAXX TERRA Double Down Rear, Tubeless Compatible

  • DERAILLEUR, REAR

    Shimano Deore, 12-Speed, SGS

  • DERAILLEUR, FRONT

    -

  • SHIFT LEVER

    Shimano Deore, M6100, 12-Speed

  • CRANKSET

    FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing

  • BOTTOM BRACKET

    Mego EXO 73mm BSA

  • CHAIN

    KMC X-12 Silver and Black

  • CASSETTE

    Shimano, Deore 12-Speed, 10-51T

  • BRAKE, FRONT

    Shimano BR-MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor

  • BRAKE, REAR

    Shimano BR-MT420, 4-Piston Hydraulic Disc Brake, 180mm Rotor

  • BRAKE LEVERS

    Shimano BL-M4100 Hydraulic Lever, I-Spec EV Compatible

  • HANDLEBAR

    Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

  • STEM

    Marin 3D Forged Alloy, 35mm

  • GRIPS

    Marin Grizzly, Lock On

  • HEADSET

    FSA Orbit 40 No.42 ACB

  • SEATPOST

    X Fusion Manic, Regular = 150mm Travel, Grande = 170mm Travel

  • SADDLE

    Marin Speed Concept

  • PEDALS

    -

  • EXTRAS

    Bolt-On Thru-Axle

Specifications, pricing, and availability are subject to change without notice.

Sizing Information

GEOMETRY

El Roy geometry diagram
REGULARGRANDE
STACK645645
REACH480510
HEADTUBE ANGLE63°63°
HEADTUBE LENGTH120120
SEATTUBE ANGLE78°78°
SEATTUBE LENGTH420430
TOPTUBE EFFECTIVE617647
BB HEIGHT318318
BB DROP6565
CHAINSTAY435435
WHEELBASE12521282
STANDOVER HEIGHT735743
FORK OFFSET4444
SEATPOST DIAMETER30.930.9
HANDLEBAR WIDTH800800
STEM LENGTH3535
CRANK LENGTH170170

All lengths in millimeters
