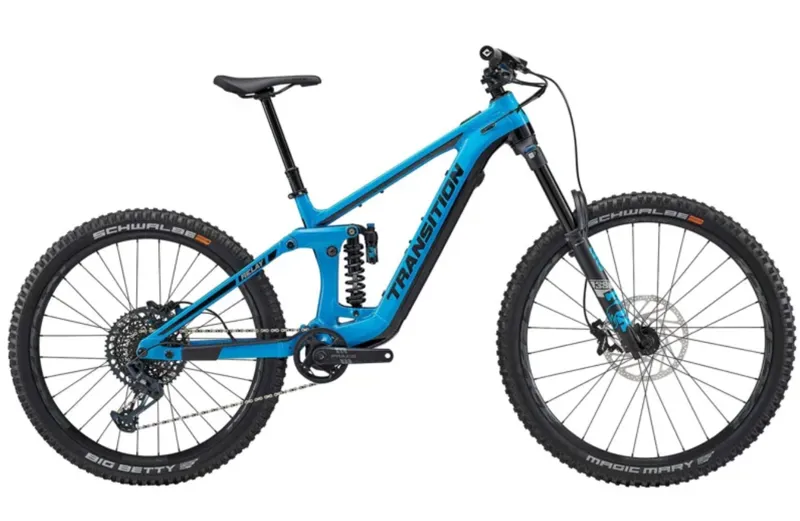

Transition Relay PNW GX Alloy E-Mountain Bike In Blue Size Medium

Season:2023

Brand:Transition

Code:01.23.11.5005

Living in uncharted territory, the Relay is a lightweight, long travel, modular mountain bike.

Always wanted a bike that could provide both an electric and non-electric experience in one chassis? The Relay is light, efficient, and quiet. This provides a more intuitive and natural feel on trail than many would expect from an eMTB. The Relay is here and ready to meet all of your mountain biking needs. Going for a rip with friends on eMTB's? Power it up and head out. Going for a rip with some friends on mountain bikes? Simply remove the battery and hit the trail with no tools required. The Relay does it all.

Features:
  • Full of modularity, the Relay can be ridden with the battery installed and powered, or removed, which transforms it into a regular mountain bike. Its versatility allows you to take it on a road trip where your plans include riding in areas that are legal for eMTB's, and also areas that do not allow eMTB's. The tool free battery door allows you to remove and reinstall the battery in a matter of seconds.
  • Starting at 42.5lb/19.27 kg with the battery and 37.5lb/17.01kg without the battery, every Relay is purpose built with components to be ridden hard.
  • Image for colour reference only.
Technical Information
  • WHEEL SIZE
    Mixed (X-Small 27.5")
  • FRAME
    Relay Alloy 170mm
  • MOTOR
    Fazua Ride 60
  • BATTERY
    Fazua Energy 430 Take Out
  • REAR SHOCK
    Fox DHX Coil Factory 2 Position (170mm Travel/205x65mm)
  • FORK
    Fox Float 38 Grip 2 Performance Elite 170mm
  • HEADSET
    FSA No.55R
  • STEM
    ANVL Swage (40mm)
  • HANDLEBAR
    ANVL Mandrel Alloy 35 XS/SM 800x20 / MD/LG/XL 800x30 / XXL 800x40
  • GRIPS
    ODI Elite Flow Lock-On
  • SADDLE
    SDG Bel Air 3
  • SEATPOST
    OneUp Dropper Post 120 XS / 150 SM / 180 MD / 210 LG/XL/XXL
  • BRAKES
    TRP DH-R EVO
  • ROTORS
    TRP R1 2.3 (223/203mm)
  • SHIFTER
    SRAM GX Eagle Single Click
  • DERAILLEUR
    SRAM GX Eagle
  • CASSETTE
    SRAM XG 1275 (10-52t)
  • CHAIN
    SRAM GX Eagle
  • CRANK
    Praxis Alloy ETOR (165mm, X-Small 160mm)
  • CHAINRING
    Transition Bash Spider w/ SRAM 32t Eagle Alloy E-Ring
  • RIMS
    RaceFace Aeffect R
  • SPOKES
    RaceFace 2.0/1.7/2.0
  • HUBS
    RaceFace Trace 28H
  • TIRE/FRONT
    Schwalbe Magic Mary, Super Trail, Soft 2.4
  • TIRE/REAR
    Schwalbe Big Betty, Super Trail, Soft 2.4
  • INCLUDED
    Fazua Charger, Tubeless Valves & Sealant
Sizing Information
Professional Opinion
Speed Balanced Geometry
SBG ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds. With SBG, a slacker head tube angle is combined with a reduced offset fork standard, preventing the front wheel from being too far in front of the rider. This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of SBG's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed maneuvering as well as improved traction, control and confidence for any skill level of rider.
XS
RELAY/PNW
SM
RELAY/PNW
MD
RELAY/PNW
LG
RELAY/PNW
XL
RELAY/PNW
XXL
RELAY/PNW
A.REACH410/405430/422460/452485/477510/502535/527
B.STACK (CARBON)590/588615/615628/634637/643646/652655/661
B.STACK (ALLOY)595/593620/620628/634637/643646/652655/661
C.EFFECTIVE TT LENGTH523/532553/564586/597614/631642/665671/696
D.SEAT TUBE LENGTH (CARBON)380390410430460490
D.SEAT TUBE LENGTH (ALLOY)410410410430460490
E.EFFECTIVE ST ANGLE79.7/79.379.1/78.478.4/77.777.8/77.177.3/76.677/76.3
SADDLE HEIGHT FOR EFFECTIVE ST ANGLE560600660720780820
ACTUAL ST ANGLE71/70.671/70.371/70.371/70.371/70.371/70.4
SEAT TUBE OFFSET AT BB909090909090
F.HEAD TUBE LENGTH (CARBON)100100115125135145
F.HEAD TUBE LENGTH (ALLOY)105105115125135145
G.HEAD TUBE ANGLE64/63.664/63.364/63.364/63.364/63.464/63.4
H.CHAINSTAY LENGTH436442/440442/440448/446448/446448/446
I.WHEELBASE1167/11721208/12111244/12471280/12821309/13121338/1341
J.BOTTOM BRACKET DROP15/112525252525
K.ESTIMATED BB HEIGHT340/343350350350350350
