The new Rift Zone EL charts a different path within the Rift Zone E family. These models take the proven geometry, travel and trail prowess of the proven Rift Zone E in a nimble and lighter package
The new Rift Zone EL charts a different path within the Rift Zone E family. These models take the proven geometry, travel and trail prowess of the proven Rift Zone E in a nimble and lighter package
Marin

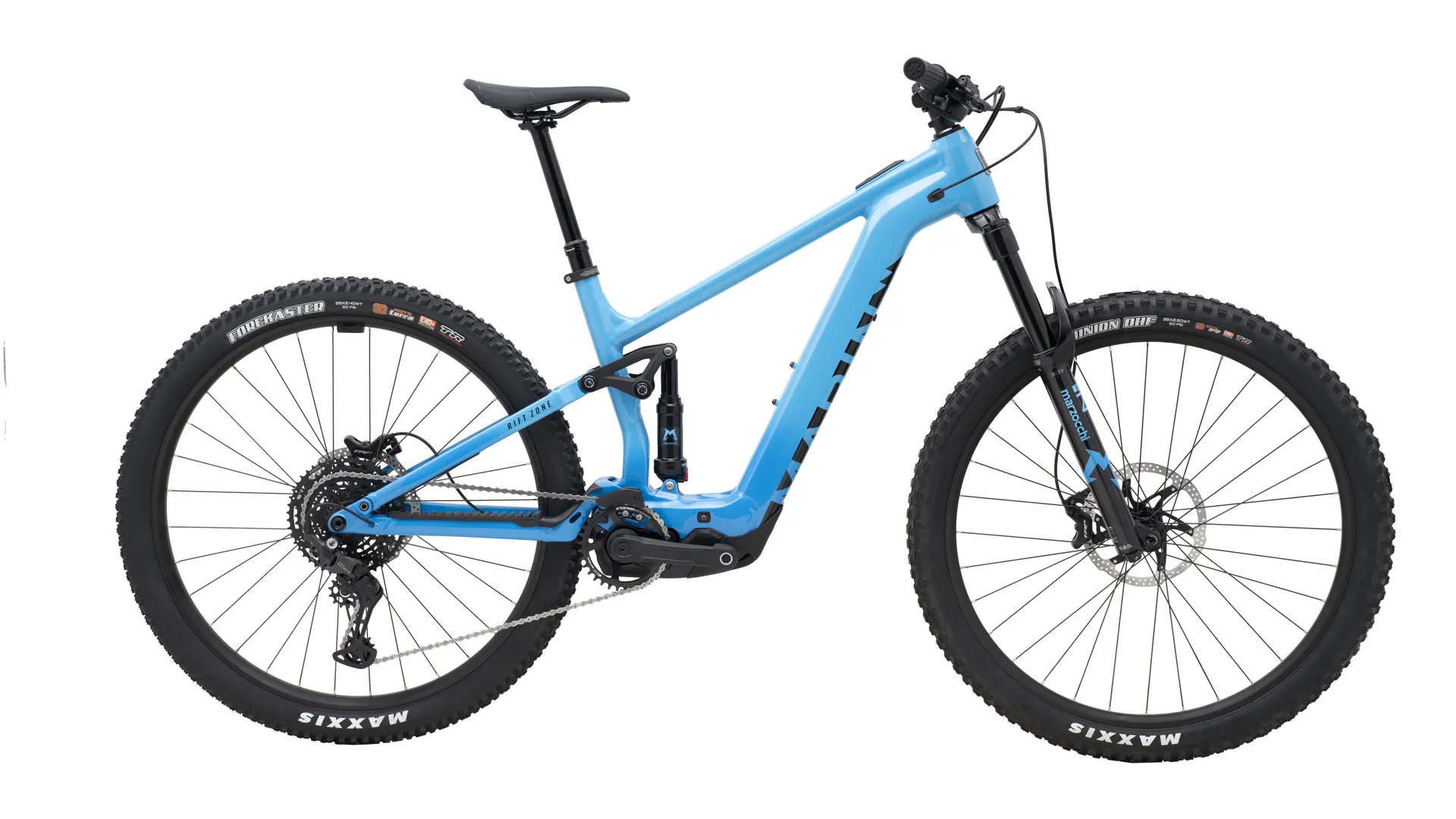

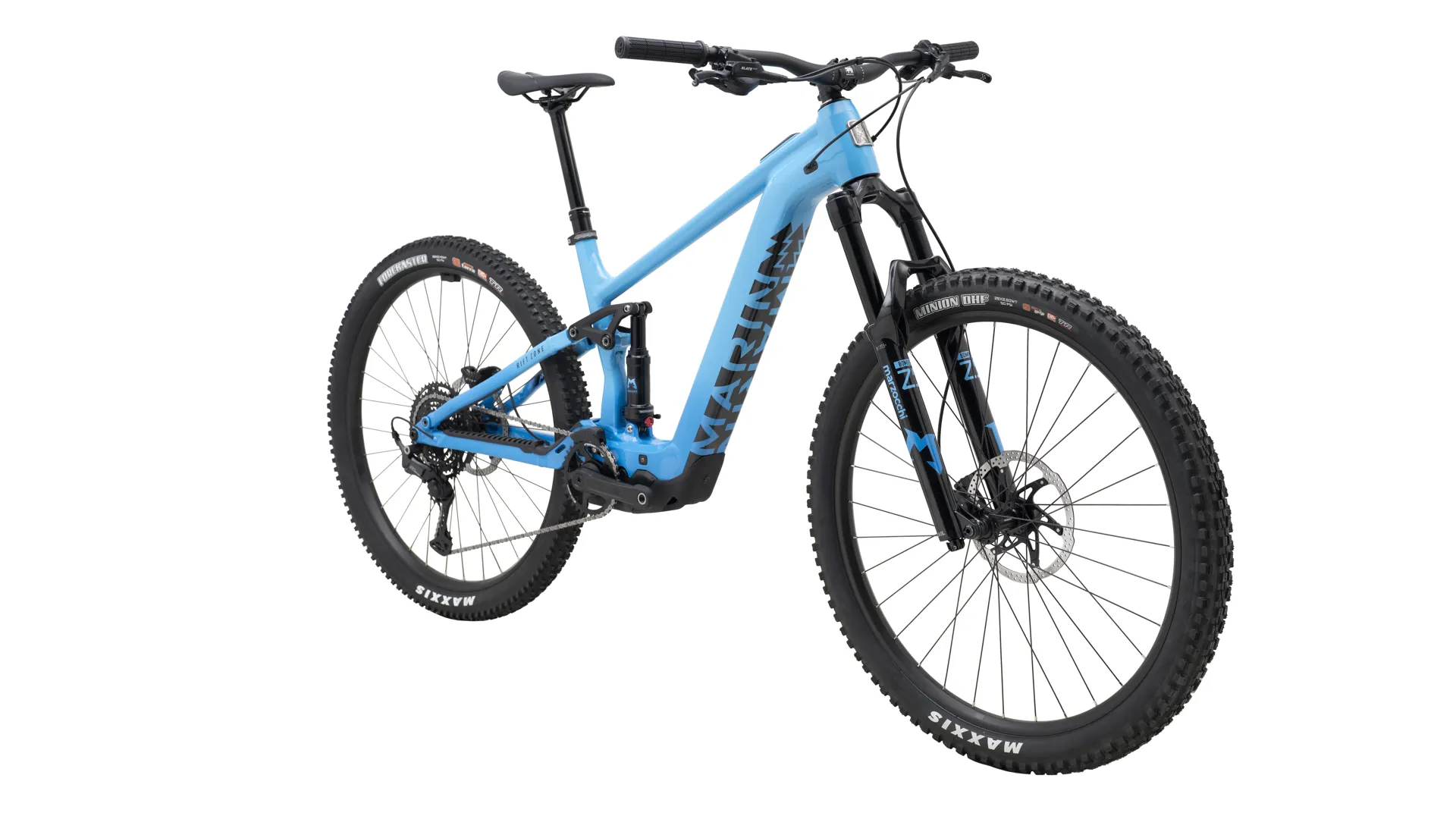

Marin Rift Zone EL 1 in Blue

£4,699.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

You have the right under The CCR (Consumer Contracts Regulations) 2014 which states that up to 14 days after receiving your goods, in most cases, you can change your mind and get a full refund. You have the right to cancel this contract within 14 days from delivery without giving any reason. This right does not apply to any customised or personalised goods bought through our website. To exercise this right please Contact Us prior to the expiry of the cancellation rights period.

If you cancel this contract, we will reimburse to you all payments received from you, including the costs of delivery (except for the supplementary costs arising if you chose a type of delivery other than the least expensive type of standard delivery offered by us).

We may make a deduction from the reimbursement for loss in value of any goods supplied, if the loss is the result of unnecessary handling by you.

We will make the reimbursement without undue delay, and not later than 14 days after the day we received back from you any goods supplied; or (if earlier) 14 days after the day you provide evidence that you have returned the goods; or if there were no goods supplied, 14 days after the day on which we are informed about your decision to cancel this contract.

We will make the reimbursement using the same means of payment as you used for the initial transaction, unless you have expressly agreed otherwise; in any event, you will not incur any fees as a result of the reimbursement.

The CRA (Consumer Rights Act) 2015 states that goods must be as described, fit for purpose and of satisfactory quality. During the expected lifespan of your product you're entitled to the following; up to 30 days, if your goods are faulty, then you can get a refund. Up to six months, if they can't be repaired or replaced, then you're entitled to a full refund, in most cases, up to six years, if the goods do not last a reasonable length of time, you may be entitled to some money back.

Nothing in this contract affects your legal rights under the Consumer Rights Act 2015 (also known as ‘statutory rights’). You may also have other rights in law.

Thanks for your support,

The Friction Cycles Team.

Marin Rift Zone EL 1 in Blue

Season:2025

Brand:Marin

Code:7375930BLUNVY

Marins all-new rift zone el (electric light) trail emtbs take everything you love about the rift zone formula and repurposes it into bikes that share the capability as the full-powered versions, but in lighter-weight packages.Made possible in part by boschs new lightweight performance line sx drive unit and compacttube internal battery, the rift zone el models deliver a decidedly playful ride, with a power delivery so natural you might forget its an ebike. All of the benefits without the bulk, the rift zone el is the perfect platform for those who dont require the full range and power output of more traditional emtbs
Technical Information

Specifications

  • Frame

    All New Series 4 Alloy Lightweight E, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle

  • Front Suspension

    Marzocchi Bomber Z1 150mm Travel, 29, 110x15 Kabolt Thru Axle, 44mm Offset

  • Rear Suspension

    Marzocchi Bomber Air Inline, Custom Tune, 210x55mm, 25xM8 Upper & Lower Mount

  • Rim

    Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible

  • Hub Rear

    Shimano FHTC500, 148x12 Thru Axle, Microspline, 32H, Centerlock

  • Hub Front

    Shimano HB-TC500, 110x10 Thru Axle, 32H, Centerlock

  • Spokes

    14g Black Stainless Steel

  • Tires

    Front: Maxxis Minion DHF, 29x2.4" MAXXGRIP, Tubeless ready, EXO+, Rear: Maxxis Forecaster 29x2.4", Tubeless Ready MAXX TERRA EXO+

  • Derailleur Rear

    Shimano CUES RD-U6000 GS, 10-Speed

  • Derailleur Front

    -

  • Shift Lever

    Shimano CUES SL-U6000-10R, 10-Speed

  • Crankset

    e*thirteen e*spec Plus, 160mm Length, 34T

  • Motor

    Bosch Performance Line SX, 600W, 55Nm torque

  • Chain

    Shimano LG500

  • Cassette

    Shimano CS-LG300-10, 11-48T

  • Brakes Front

    TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor

  • Brakes Rear

    TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor

  • Brake Levers

    TRP Slate EVO Hydraulic Lever, I-Spec EV Compatible

  • Handlebar

    Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

  • Stem

    Marin 3D Forged Alloy, 35mm

  • Grips

    Marin Grizzly Lock On

  • Headset

    FSA Custom, Adjustable HTA Design

  • Seatpost

    TranzX, YSI34 QL, Plastic 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 34.9mm

  • Saddle

    Marin Speed Concept

  • Pedals

    Marin MTB Plastic

  • Battery

    Bosch 400 Wh Internal (Optional PowerMore 250 wh external battery using PowerMore 150mm cable EB12.120.036)

  • Display

    Bosch BRC3100 Systems Controller

  • Switch

    Bosch BRC3300 Bluetooth Remote 22.2mm Clamp

  • Extras

    e*thirteen e*Spec Chainguide

  • Extras

    Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head, Bosch EB12.110.016; 2A Charger

  • Range, Charging Time

    15-55 miles (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 6 Hours (estimated, under ideal conditions)

Specifications, pricing, and availability are subject to change without notice.

Sizing Information

Geometry

Geometry configuration

  • Front/Rear Wheels:29"/29"
  • BBand Chainstay:n/a
  • Headtube Angle:0° Headset Cup
Rift Zone EL1 geometry diagram
SMLXL
Stack618.74632.33641.4645.93
Reach430460490520
Headtube Angle65°65°65°65°
Headtube Length100115125130
Seattube Angle77°77°77°77°
Seattube Length400420430460
Toptube Effective572.85605.99638.08669.12
BB Height342342342342
BB Drop36363636
Chainstay440440440440
Wheelbase1188.811225.151259.381291.49
Standover Height674.75687.74691.98699.2
Fork Offset44444444
Seatpost diameter34.934.934.934.9
Handlebar width780780780780
Stem length35353535
Crank length160160160160

All lengths in millimeters
