The Alpine Trail E will take you further, faster, allowing you to tackle the most aggressive trails either up or down.
The Alpine Trail E will take you further, faster, allowing you to tackle the most aggressive trails either up or down.
Marin

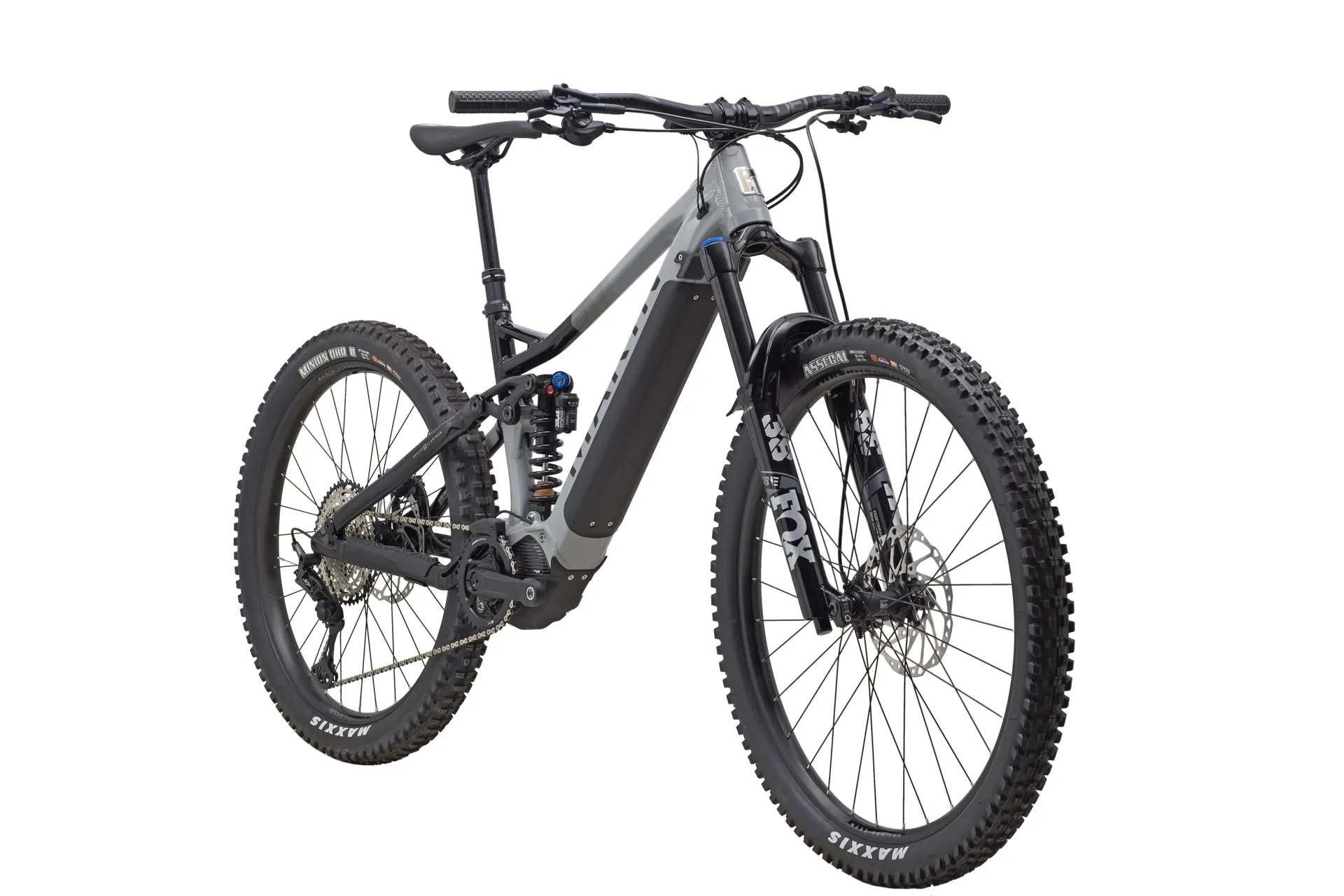

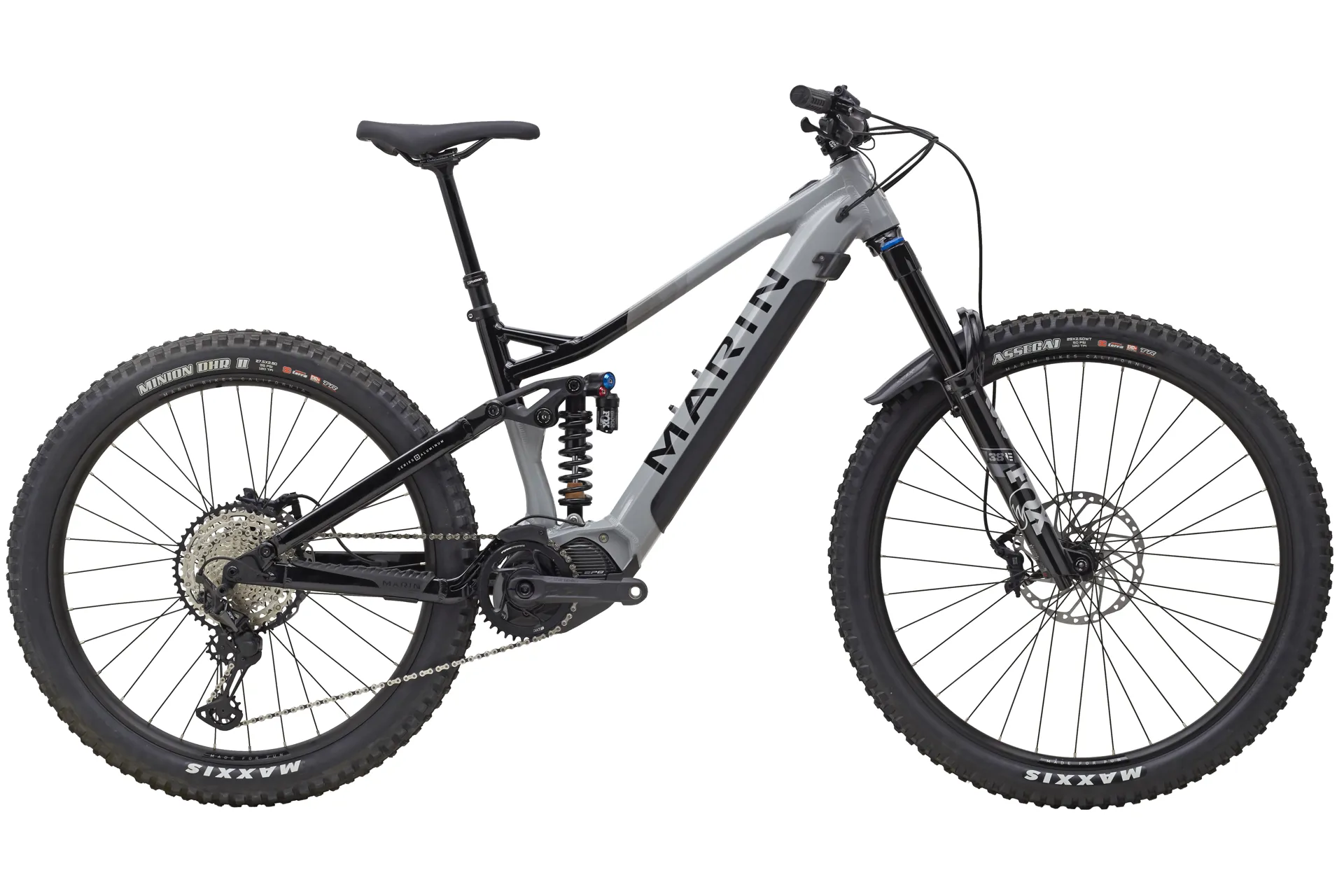

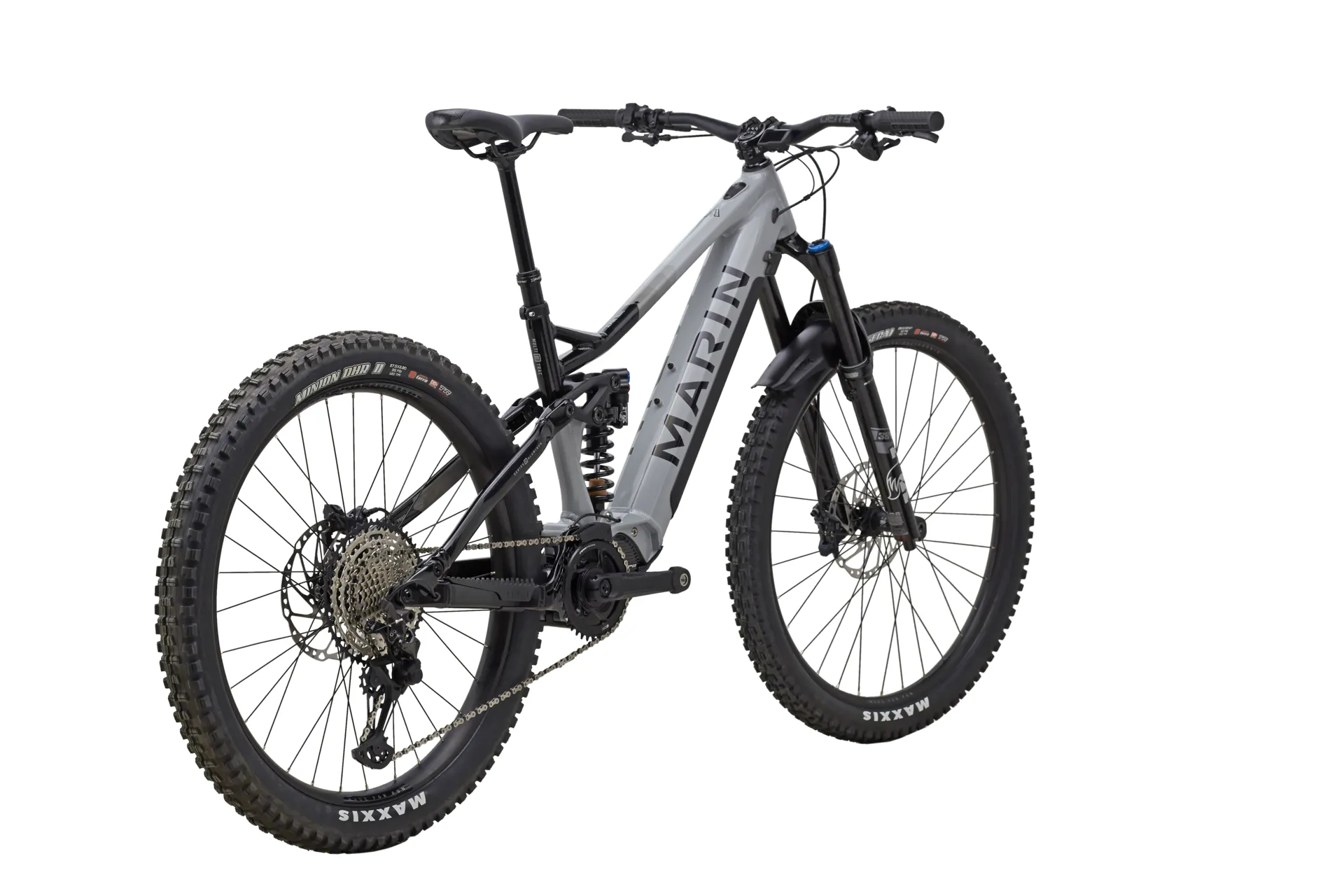

2022 Marin Alpine Trail E2 Alloy E-Bike in Silver

£5,765.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

You have the right under The CCR (Consumer Contracts Regulations) 2014 which states that up to 14 days after receiving your goods, in most cases, you can change your mind and get a full refund. You have the right to cancel this contract within 14 days from delivery without giving any reason. This right does not apply to any customised or personalised goods bought through our website. To exercise this right please Contact Us prior to the expiry of the cancellation rights period.

If you cancel this contract, we will reimburse to you all payments received from you, including the costs of delivery (except for the supplementary costs arising if you chose a type of delivery other than the least expensive type of standard delivery offered by us).

We may make a deduction from the reimbursement for loss in value of any goods supplied, if the loss is the result of unnecessary handling by you.

We will make the reimbursement without undue delay, and not later than 14 days after the day we received back from you any goods supplied; or (if earlier) 14 days after the day you provide evidence that you have returned the goods; or if there were no goods supplied, 14 days after the day on which we are informed about your decision to cancel this contract.

We will make the reimbursement using the same means of payment as you used for the initial transaction, unless you have expressly agreed otherwise; in any event, you will not incur any fees as a result of the reimbursement.

The CRA (Consumer Rights Act) 2015 states that goods must be as described, fit for purpose and of satisfactory quality. During the expected lifespan of your product you're entitled to the following; up to 30 days, if your goods are faulty, then you can get a refund. Up to six months, if they can't be repaired or replaced, then you're entitled to a full refund, in most cases, up to six years, if the goods do not last a reasonable length of time, you may be entitled to some money back.

Nothing in this contract affects your legal rights under the Consumer Rights Act 2015 (also known as ‘statutory rights’). You may also have other rights in law.

Thanks for your support,

The Friction Cycles Team.

2022 Marin Alpine Trail E2 Alloy E-Bike in Silver

Season:2022

Brand:Marin

Code:73245600

MOUNTAIN BIKING WITH A BOOST

BEYOND CAPABLE, BOTH UP AND DOWN, IN EVEN THE MOST CHALLENGING TERRAIN

MAXIMIZING FUN

The Alpine Trail E will take you further, faster, allowing you to tackle the most aggressive trails either up or down.

Key upgrades from Alpine Trail E1:

  • Shimano STEPS EP8 system and 630Wh battery
  • Fox 38/Float DHX2 Performance Elite suspension
  • Shimano XT/SLX 12-speed drivetrain w/10-51t cassette
  • Shimano SLX 4-piston disc brakes
  • Deity Ridgeline bar/Copperhead stem

Marin Alpine Trail E2 power switch and Shimano EP8 display.Marin Alpine Trail E2 and Shimano EP8 drive unit.
Marin Alpine Trail E2 shock detail.
Marin Alpine Trail E2 downtube battery protector detail.Marin rider Nikki Whiles styling on an Alpine Trail E2.
Technical Information

SPECIFICATIONS

  • FRAME

    All New Series 4 Alloy Frame, 150mm Multitrac suspension, Integrated Battery/On-switch/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor

  • FORK

    Fox 38 Performance Elite, 160mm travel, 29" , 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox Fender

  • SHOCK

    Fox Float DHX2, Performance Elite, Low Speed Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount, S/M Spring = 350lb, L/XL Spring = 450lb

  • RIMS

    Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width; Pinned Joint, Disc Specific, Tubeless Compatible

  • HUB REAR

    Shimano HB-MT510B, 148x12mm, Centerlock, Microspline Freehub Body

  • HUB FRONT

    Shimano MT-410B, 110x15mm, Centerlock Disc, 32H

  • SPOKES

    14g Black Stainless Steel

  • TIRES

    Front: Vee Tire Co Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Rear: Vee Tire Co Crown Gem, 27.5x2.8”, TACKEE Compound, Tubeless Compatible

  • DERAILLEUR REAR

    Shimano XT 8100 12-Speed, SGS

  • DERAILLEUR FRONT

    -

  • SHIFT LEVER

    Shimano SLX 7100 12-Speed, I-Spec EV

  • CRANKSET

    e13 e*Spec Plus Crank, 165mm Length with e13 e*Spec DM Chainring 38T, e13 Plus Chainguide, Aluminum Plate

  • MOTOR

    Shimano Steps EP8 Drive Unit, 250W, 85Nm

  • CHAIN

    KMC E12S, EBike Specific Chain

  • CASSETTE

    SR Suntour, 12-Speed, 10-50T

  • BRAKES FRONT

    Shimano SLX 4-Piston Hydraulic Disc, 203mm Rotor

  • BRAKES REAR

    Shimano SLX 4-Piston Hydraulic Disc, 203mm Rotor w/ Speed Sensor

  • BRAKE LEVERS

    Shimano SLX Levers, I-Spec EV

  • HANDLEBAR

    Marin 35mm 7000 Alloy Bar, 780mm Length, 5 Degree Up, 8 Degree Back

  • STEM

    Marin CNC Stem, 35mm Length, 35mm Bar Bore

  • GRIPS

    Marin Single Clamp Locking

  • HEADSET

    FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

  • SEATPOST

    X-Fusion Manic, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm

  • SADDLE

    Marin eMTB Saddle

  • PEDALS

    Marin MTB Plastic

  • BATTERY

    BT-8036, Internal 630Wh

  • DISPLAY

    SC-E8000 Display

  • SWITCH

    SW-E7000 Left Hand Switch for Assist Mode Change

  • EXTRAS

    Shimano Left Hand Switch for Assist Mode Change, Shimano Battery Charger EC-E6002, Bolt-on Thru-Axle

Specifications, pricing, and availability are subject to change without notice.

Sizing Information

GEOMETRY

Alpine Trail E2 geometry diagram
SMLXL
STACK613622631640
REACH445465485505
HEADTUBE ANGLE63°63°63°63°
HEADTUBE LENGTH100110120130
SEATTUBE ANGLE78°78°78°78°
SEATTUBE LENGTH390400425430
TOPTUBE EFFECTIVE575597619641
BB HEIGHT340.5340.5340.5340.5
BB DROP28282828
CHAINSTAY435435435435
WHEELBASE1215123912641288
STANDOVER HEIGHT681.6681.4686.8689.8
FORK OFFSET44444444
SEATPOST DIAMETER30.930.930.930.9
HANDLEBAR WIDTH780780780780
STEM LENGTH50505050
CRANK LENGTH165165165165

All lengths in millimeters
