Beyond capable, both up and down, in even the most challenging terrain. Maximising fun. The Alpine Trail E will take you further, faster, allowing you to tackle the most aggressive trails either up or down.
Beyond capable, both up and down, in even the most challenging terrain. Maximising fun. The Alpine Trail E will take you further, faster, allowing you to tackle the most aggressive trails either up or down.
Marin

2022 Marin Alpine Trail E1 Alloy E-Bike in Red

£4,465.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

You have the right under The CCR (Consumer Contracts Regulations) 2014 which states that up to 14 days after receiving your goods, in most cases, you can change your mind and get a full refund. You have the right to cancel this contract within 14 days from delivery without giving any reason. This right does not apply to any customised or personalised goods bought through our website. To exercise this right please Contact Us prior to the expiry of the cancellation rights period.

If you cancel this contract, we will reimburse to you all payments received from you, including the costs of delivery (except for the supplementary costs arising if you chose a type of delivery other than the least expensive type of standard delivery offered by us).

We may make a deduction from the reimbursement for loss in value of any goods supplied, if the loss is the result of unnecessary handling by you.

We will make the reimbursement without undue delay, and not later than 14 days after the day we received back from you any goods supplied; or (if earlier) 14 days after the day you provide evidence that you have returned the goods; or if there were no goods supplied, 14 days after the day on which we are informed about your decision to cancel this contract.

We will make the reimbursement using the same means of payment as you used for the initial transaction, unless you have expressly agreed otherwise; in any event, you will not incur any fees as a result of the reimbursement.

The CRA (Consumer Rights Act) 2015 states that goods must be as described, fit for purpose and of satisfactory quality. During the expected lifespan of your product you're entitled to the following; up to 30 days, if your goods are faulty, then you can get a refund. Up to six months, if they can't be repaired or replaced, then you're entitled to a full refund, in most cases, up to six years, if the goods do not last a reasonable length of time, you may be entitled to some money back.

Nothing in this contract affects your legal rights under the Consumer Rights Act 2015 (also known as ‘statutory rights’). You may also have other rights in law.

Thanks for your support,

The Friction Cycles Team.

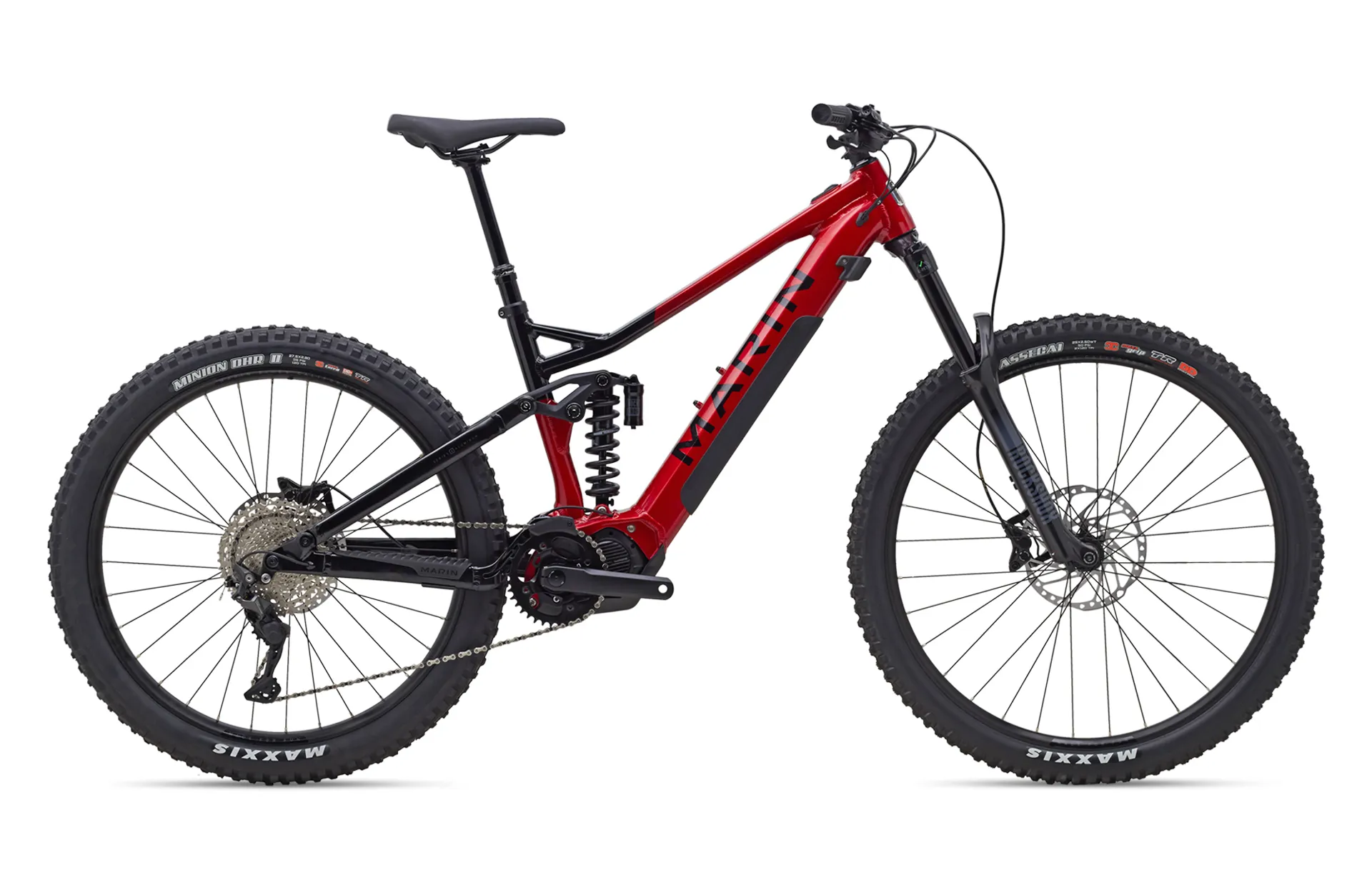

2022 Marin Alpine Trail E1 Alloy E-Bike in Red

Season:2022

Brand:Marin

Code:marinalpinee1

Alpine Trail E models are built upon our Series 4 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider the highest-end alloy frame that Marin offers, compatible with modern coil or air shocks.

The Alpine Trail E features the same great, proven MultiTrac suspension technology, but optimized for the Shimano STEPS system. With this combination there is no need for platform or lockout levers, just get on and blast up the hills.

29” front and 27.5”+ rear wheel sizes are the ideal combination for the Alpine Trail E, with larger front wheel easily rolling over most any trail obstacle and offering the best cornering traction, while the burly 27.5” x 2.8” rear setup adds playfulness and enhances acceleration and braking traction.

The modern day trail rider needs their saddle out of the way at times, while low-slung frames require longer length posts. On the Alpine Trail E, seat tube lengths have been minimized, along with minimum insertion depths, so that riders of all sizes can get the proper extension needed.
Technical Information
  • FRAME

    All New Series 4 Alloy Frame, 150mm Multitrac suspension, Integrated Battery/On-switch/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor

  • FORK

    RockShock 35 Gold RL 29", Motion Control Damper, 160mm Travel, Maxle Stealth Axle, 44mm Offset

  • SHOCK

    RockShock Super Deluxe Coil R, Rebound Adjustment, 205x65mm, 25mmxM8 Lower Hardware, S/M Spring Rate = 300lb, L/XL Spring Rate = 400lb

  • RIMS

    Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible

  • HUB REAR

    Shimano HB-MT400B, 148x12mm, Centerlock Disc, Standard Freehub Body

  • HUB FRONT

    Shimano MT-410B, 110x15mm, Centerlock Disc, 32H

  • SPOKES

    14g Black Stainless Steel

  • TIRES

    Front: Vee Tire Co Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Rear: Vee Tire Co Crown Gem, 27.5x2.8”, TACKEE Compound, Tubeless Compatible

  • DERAILLEUR REAR

    Shimano Deore 5100 Direct Attachment, 10-Speed

  • DERAILLEUR FRONT

    -

  • SHIFT LEVER

    Shimano Deore M4100-R, I-Spec EV, 10-Speed

  • CRANKSET

    Marin Forged Alloy 165mm Length, Narrow Wide 38T Chainring, e13 Plus Chain guide, Aluminum Plate

  • MOTOR

    Shimano STEPS E7000, 250W, 60Nm

  • CHAIN

    KMC X-10E, EBike Specific, Silver

  • CASSETTE

    Shimano Deore M4100-10 10-speed 11-46T

  • BRAKES FRONT

    Shimano MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor

  • BRAKES REAR

    Shimano MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor w/ Speed Sensor

  • BRAKE LEVERS

    Shimano MT4100 Hydraulic Lever, I-Spec EV Compatible

  • HANDLEBAR

    Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

  • STEM

    Marin 3D Forged Alloy, 35mm

  • GRIPS

    Marin Single Clamp Locking

  • HEADSET

    FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

  • SEATPOST

    TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm

  • SADDLE

    Marin eMTB Saddle

  • PEDALS

    Marin MTB Plastic

  • BATTERY

    BT-8035, Internal 504Wh

  • DISPLAY

    SC-E7000 Display

  • SWITCH

    SW-E7000 Left Hand Switch for Assist Mode Change

  • EXTRAS

    Shimano Battery Charger EC-E6002, Bolt-on Thru-Axle

Specifications, pricing, and availability are subject to change without notice.

Sizing Information
Rider height range

S - 5'3" to 5'6"
M - 5'6" to 5'10"
L - 5'10" to 6'2"
XL - 6'2" to 6'4"

Alpine Trail E1 geometry diagram
SMLXL
STACK613622631640
REACH445465485505
HEADTUBE ANGLE63°63°63°63°
HEADTUBE LENGTH100110120130
SEATTUBE ANGLE78°78°78°78°
SEATTUBE LENGTH390400425430
TOPTUBE EFFECTIVE575597619641
BB HEIGHT340.5340.5340.5340.5
BB DROP28282828
CHAINSTAY435435435435
WHEELBASE1215123912641288
STANDOVER HEIGHT681.6681.4686.8689.8
FORK OFFSET44444444
SEATPOST DIAMETER30.930.930.930.9
HANDLEBAR WIDTH780780780780
STEM LENGTH35353535
CRANK LENGTH165165165165

All lengths in millimeters
